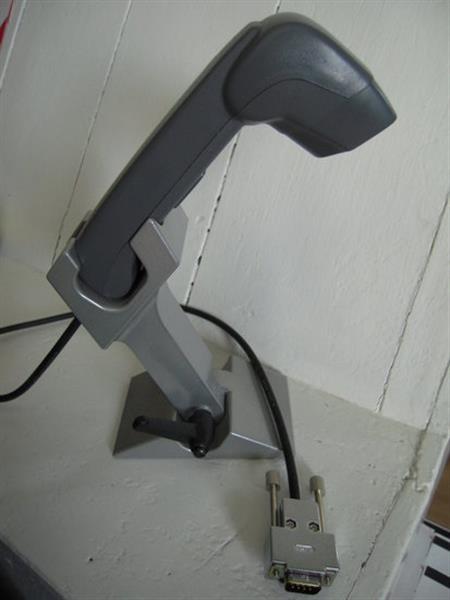

Denso QS20-H - 2D Barcode Scanner


sinds 3-4-2024 22:40:09


prijs: € 15,70
Locatie : Baarle-nassau  (Noord-Brabant)
Website : Bezoek website

Kenmerken

Beschrijving

Denso QS20-H    2D Barcode ScannerDesktop Barcode Scanner met Standaard Model: QS20-HConditie: Occasion Scans 1 en 2d barcodes Aansluiting: Serieel RS-232Kleur: GrijsDraadloos: NEE Inclusief Voedingsa
Industrial Handheld Barcode Scanner; Serial 2D Code Barcode & Image scan
Excellent reading capability
The QS20H can read standard QR Code with approximately 2,000 characters (numeric), thus creating a wide range of applications using large portable data files. Additionally, the QS20H reads Micro QR Code, PDF417 and MaxiCode, as well as linear bar codes.
Enhanced reading abilities with triple LED pointer
The triple LED pointer shows the center and the range of the reading area. This allows you to read the target symbol easily. The QS20H has been designed to accommodate fluctuations in ambient light, which enables increased reading ability in any environment.
 Capable of reading high density bar codes omni-directionally
Allows you to read various types of bar codes (UPC/EAN, Code 39, NW7, ITF, Code 128) in all directions. The QS20H can read high density bar codes with narrow 0.15mm bars to bars that are wider than the reading window.
General Specifications:
Readable codes
Two-dimensional codes
QR Code, MicroQR Code, PDF417, and Maxi Code (available soon)
Bar codes
UPC-A/E, EAN-13/8, Code 39, NW-7, ITF, Code 128
Resolution
Two-dimensional codes
0.25mm (9.84mils) min
Bar codes
0.15mm (5.91mils) min
Scanning reference position
75mm (2.95)
Pointer
Triple LED pointer
PCS value
0.45min
Skew angle
360
Elevation and inclination
+ (-) 35
Interface
PC interface
RS232C
Transmission speed
115.2 Kbps max
Cable length
2m
Interface connector
DB, 9-pin (female)
Drive voltage
4.5 to 10V DC
Power supply (option)
Dedicated AC adapter
Weight (excluding cable)
135g
Operating temperature range
0 to 40C
Operating humidity range
10 to 85% RH (without dew condensation)
