Beschrijving

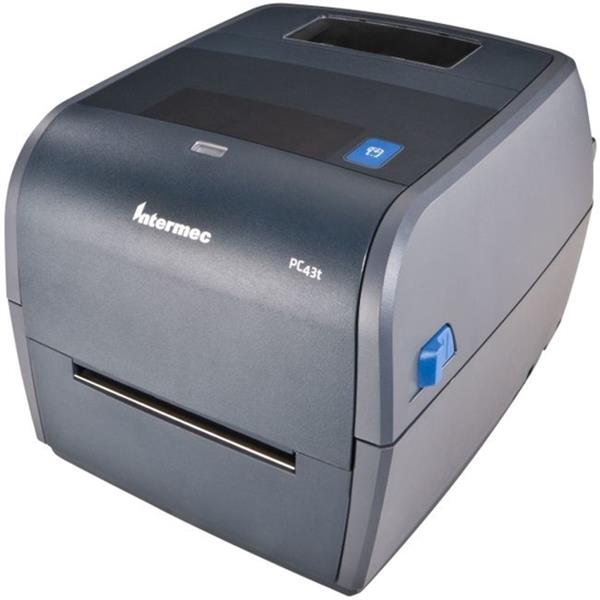

Intermec Easycoder PC43T Barcode - Label printerDirect Thermisch (DT) + Thermisch Transfer (TT)Toepassing: Barcodes - Labels - Sticker Conditie: OccasionAansluiting: USB / RJ-45 Etehrnet NetwerkMaxi
Interfaces
Standard: USB Device Type-B connector v.2.0 high speed, USB Host Type-A connector v.2.0 high speed
Field Installable: Ethernet 10/100 Mbps module, Dual-radio module (802.11 b/g/n and Bluetooth® V2.1), USB-to-Serial adapter (RS-232), USB-to-Parallel adapter
User Interfaces:
Choice of:
⢠2.36 VGA LCD 480 x 234 resolution in 10 languages, 8 buttons and ready-to-work LED
⢠Graphical back-lit Icons: cover open, paper out, ribbon out (PC43t), general error, maintenance, pause, thermal printhead too hot, data status, wireless status (if installed), Bluetooth® status (if installed), ready-to-work LED, and one Print/Feed button
⢠User-configurable audio sounds with volume levels.
Supported Protocols:
Serial Flow Control: XON/XOFF, RTS/CTS
Wireless Protocol: WEP static (64/128bits), WPA, WPA2, WEP dynamic, EAP-PEAP, EAP-TTLS, LEAP, EAP-FAST, EAP-TLS, CCX compliant level 3.
Graphics: Supports user-defined fonts and graphic formats including BMP, GIF, PCX, and PNG.
Memory
Standard: 128 MB Flash, 128 MB RAM (DDR2)
Optional: Up to 32 GB via user USB thumbdrive
Physical Characteristics
Height:
PC43d 4 DT: 167 mm (6.6 in)
PC43t 4 TTR Icon: 182 mm (7.2 in)
PC43t 4 TTR LCD: 227 mm (8.9 in)
Width:
PC43d 4 DT: 180 mm (7.1 in)
PC43t 4 TTR: 210 mm (8.3 in)
Depth:
PC43d 4 DT: 215 mm (8.4 in)
PC43t 4 TTR: 281 mm (11.1 in)
Weight:
PC43d 4 DT: 1.72 kg (3.80 lbs)
PC43t 4 TTR: 2.70 kg (5.95 lbs)
Power
Separate power supply
Input: 100â“240 V AC/50â“60 Hz, 1.5 A
Output: 24 V DC, 2.5 A Energy-Star Compliant
Print Specifications
Label Roll Core:
Min. 25.4 mm (1 in)
Max. 38.1 mm (1.5 in)
Label Roll Max Diameter: 127 mm (5 in)
Max Label Width:
PC23d: 60 mm (2.36 in)
PC43: 118 mm (4.7 in)
Max Length:
203 dpi â“ 1727 mm (68 in)
300 dpi â“ 900 mm (35 in)
Print Direction: Prints text, bar codes and graphics in all four directions
Print Speed: Selectable up to 8 ips (203.2 mm/sec) for 203 dpi; 6 ips (152.4 mm/sec) for 300dpi
Print Width:
PC43:
203 dpi â“ max. 104 mm (4.1 in)
300 dpi â“ max. 106 mm (4.2 in)
PC23d:
203 dpi â“ max. 56 mm (2.2 in)
300 dpi â“ max. 54 mm (2.1 in)
Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)
Supported Bar Code Symbologies
1-Dimensional: All major 1-dimensional bar code symbologies are available
2-Dimensional: Aztec, Cod
Kenmerken: Kopen in Baarle-nassau
