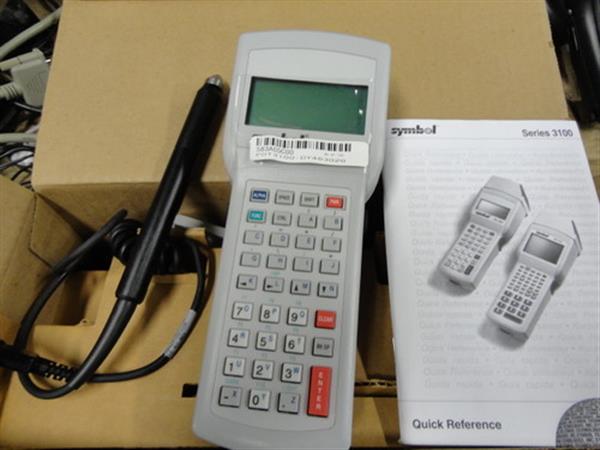

Symbol PDT3100 Handheld Laser Barcode Scanner Draadloze - Hand-Held Barcode ScannerMerk: SymbolModel: PDT3100-DY463020Memory: 640 Kb Conditie: NIEUW Aansluiting: SerieelKleur: WitDraadloos: JA35 Kno
PDT3100 Series Portable Data Terminals
Industry Leading Data Terminal with New Enhancements
The PDT3100 from Symbol Technologies is the bar code data capture industry's most popular portable data terminal with a proven history of performance and reliability second to none. A wide variety of flexible options - including a choice of displays, keypads, bar code scanning and communications - enable the PDT3100 to be customized to best fit the needs of your application. Users can select from 4- or 8-line by 20 character displays, 35- or 46-key alphanumeric keypads, optional integrated 1-D scanning, and either batch or wireless communications via Symbol's Spectrum24® wireless LAN technology. An improved display is sharper and easier to read, even in bright light. And a new and improved scan engine delivers robust scanning performance.
High Performance First-Time Every-Time Scanning
The PDT3100 Series offers outstanding scanning for the most demanding environments. The SE1200 HP scan engine delivers faster scanning with the ability to easily read bar codes through plastic and other protective coatings, poor quality bar codes, and reflective and low-contrast symbols as well. In addition, the flexible scan head can rotate, enabling left- or right-handed scanning.
Ideal for Data-Intensive Applications
The PDT3100 Series is ideal for data-intensive applications in a wide range of industries including retail, where portable data terminals bring increased efficiency and accuracy to shelf price audits, price checking, order entry, inventory control, shipping, picking and receiving. In transportation and logistics environments, the PDT3100 enables more efficient package/baggage tracking, picking and receiving, and cross-dock applications.
PDT 3100 Specification Highlights
Physical Characteristics
Dimensions: 4-line or 8-line display with 1-D scanning: 1.9 in. D x 3 in. W x 9.38 in. H/48 mm D x 76 mm W x 238 mm H
Weight: 15.5 oz./440 gm to 16.9 oz./480 gm; includes battery and laser module
Display: 4-line or 8-line by 20 characters, supertwist FSTN Film Super Twist Neumatic
(LCD, backlight, reverse video, double-high and double-wide characters)
Battery: 9-volt alkaline battery; high-capacity NiMH battery pack
Keypad: 21-key hard key cap; 35-key, or 46-key conductive rubber; side alpha-shift key and scan trigger
User Environment
ESD: 15KV electrostatic discharge to all surfaces without loss of data
Humidity: 0% to 95% noncondensing at 122°F/50°C
Drop Specification: Unit functions normally after 4 ft./1.2 m drop to concrete
Operating Temperature: 32° to 104°F/0° to 40°C
Storage Temperature: -4° to 140°F/-20° to 60°C
Performance Characteristics
Microprocessor: 80c88 type (8 MHz/V25)
Operating System: Standard 16-bit DR-DOS software
RAM Memory: Up to 7.6 MB for data and/or program storage
ROM Memory: System EPROM 128 KB (DOS, BIOS, and terminal diagnostics)
Non-Volatile Memory: 256KB for program storage in a protected area
Real-Time Clock: Time and date stamping under software control
Interfaces: RJ-41: for cradle, cable or printer interface
Batch Communications
RJ-41: Limited RS-232-C communications capable of transmission speeds from 150 b
