Beschrijving
Printer for shipping labels Printer USB + Netwerk aansluiting

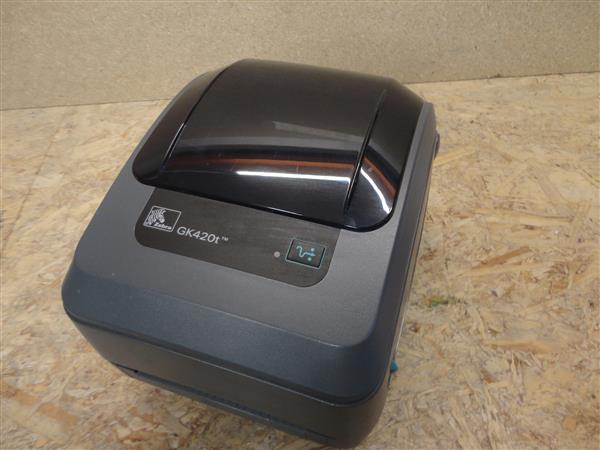

Zebra GK420T Thermisch Transfer Printer:
Thermisch Transfer & Thermisch Direct
Resolutie: 203Dpi
Toepassing: Barcodes - Labels - Sticker
Conditie: Occasion

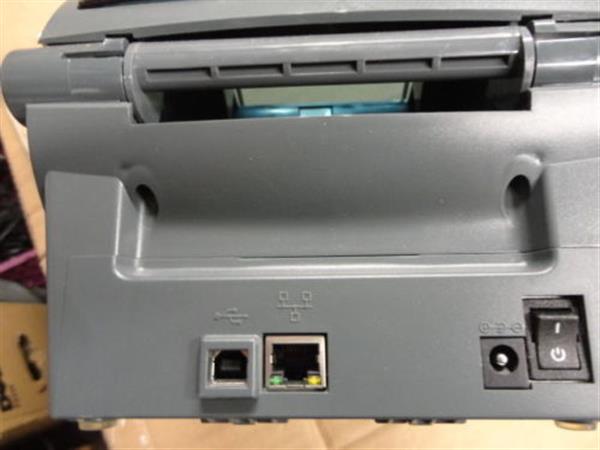

Aansluiting: USB - Ethernet
Maximale Media Breedte: 10,8 cm
Inclusief:
Voedings Adapter
USB Kabel
Printer Specifications
Resolution 203 dpi (8 dots/mm)
MemoryStandard: 8 MB SDRAM (3 MB available to end user); 4 MB Flash (1.5 MB available to end user)
Print width 4.09" (104 mm)
Print length 39" (991 mm)
Print speed 5" (127 mm)/sec
Media sensors Reflective
Transmissive
ã
Media Characteristics
Maximum label and liner width 4.25" (108 mm)
Minimum label and liner width 0.75" (19 mm)
Maximum label and liner length 0.38" (9.7 mm) to 39" (991 mm)
Maximum roll diameter 5" (127 mm)
Core diameter 0.5" (12.7 mm), 1.0" (25.4 mm), 1.5" (37.1 mm)
Media thickness 0.003" (0.08 mm) to 0.0075" (0.20 mm)
Media typesblack bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock
ã
Ribbon Characteristics
Outside diameter 1.34" (34 mm)
Standard length 244' (74 m)
Ratio 1:1
Ribbon width
Recommended to be at least as wide as media
1.33" (33.8 mm) to 4.3" (110 mm)
ID Core 0.5" (12.7 mm)
ã
Operating Characteristics
Operating temperatureTT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal
Storage temperatures -40° F (-40° C) to 140° F (60° C)
Operating humidity 10-90% non-condensing
Storage humidity 5-95% non-condensing
Electrical Auto-detecable (PFC Compliant) 100-240 VAC, 50-60 Hz
Agency approvals
FCC Part 15
Subpart 15
VCCI
C-Tick
EN55022 Class-B
EN6100-3-2
EN6100-3-3
EN55024
CCC
CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
TUV NRTL
IRAM
NOM
AAMI
ã
Physical Characteristics
Width 7.6" (194 mm)
Height 7.5" (191 mm)
Depth 10" (254 mm)
Weight 4.6 lbs (2.1 kg)
Shipping weight 9.1 lbs (4.1 kg)
Orientation Center
ã
Related Product
O ptions
10/100 internal Ethernet connectivity
Dispenser - label peel and present with present sensor
Asian font sets
Communication and Interface Capabilities
Auto-sensing Serial RS-232 (DB-9)
USB V1.1, bi-directional
Centronics Parallel
10/100 internal Ethernet (replaces parallel port)
ã
Programming Languages
Core programming languages EPL2, ZPL I/ZPL II
ã
Bar Codes/Symbologies
Line
Kenmerken: Kopen in Baarle-nassau
