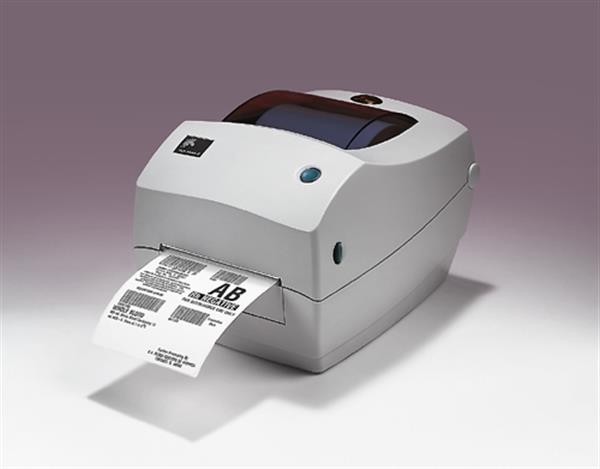

Zebra TLP 3844-Z Thermal Transfer Barcode Printer Standard Features
Print method: Thermal Transfer or Direct Thermal
Construction: ABS double-walled casing
OpenACCESSTM design for easy media loading
32 bit RISC processor
Auto-Calibration
Resident scalable font
Head-up sensor
Zebra Printer Management
Zebra TLP 3844-Z Thermal Transfer Barcode Printer Specifications
Printer Specifications
Resolution 300 dpi (12 dots/mm)
Memory Standard: 8 MB SDRAM (4 MB available to user); 4 MB Flash (2 MB available to user)
Print width 4.09" (104 mm) maximum
Print length 39" (991 mm)
Max. Print Speed 4" (102 mm) per second
Media Sensors Transmissive
Reflective
Media Characteristics
Maximum label and liner width 4.25" (108 mm)
2.8" (71 mm) with Media Adapter Guides
Minimum label and liner width 1.00" (25.4 mm)
.0585" (15 mm) w/ Media Adapter Guides
Maximum label and liner length 39" (991 mm)
Maximum roll diameter 5" (127 mm)
Core diameter 1" (25.4 mm) or 1.5" (38 mm)
Media thickness 0.003" (.08mm) to .007" (0.18 mm)
Ribbon Characteristics
Outside diameter 1.34" (34 mm)
Standard length 244' (74 m)
Ratio 1:1
Ribbon width Recommended to be at least as wide as media
1.33" (33.8 mm) to 4.30" (110 mm)
ID Core 0.5" (12.7 mm)
Operating Characteristics
Operating temperature TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
Storage temperatures -40° F (-40° C) to 140° F (60° C)
Operating humidity 10-90% non-condensing R.H.
Storage humidity 5-95% non-condensing R.H.
Electrical Auto-detectable (PFC compliant)
Output: 20 VDC, 2.5A
Input: 100-240 VAC, 50-60 Hz
Agency approvals UL, FCC, C-TICK, CCC/SRRC, NOM, CSA, CE, VCCI/PSE, GOST-R
Physical Characteristics
Width 7.8" (198 mm)
Height 6.8" (173 mm)
Depth 9.4" (238 mm)
Weight 3.7 lbs.
Shipping weight 6.3 lbs.
