Beschrijving
Zebra ZM600 Barcode Label Printer Professionele Thermische Printer: Resolutie: 203Dpi Toepassing: Barcodes - Labels - Sticker Conditie: Occasion Aansluiting: USB / Parallel / Serieel / RJ-45 Maxima

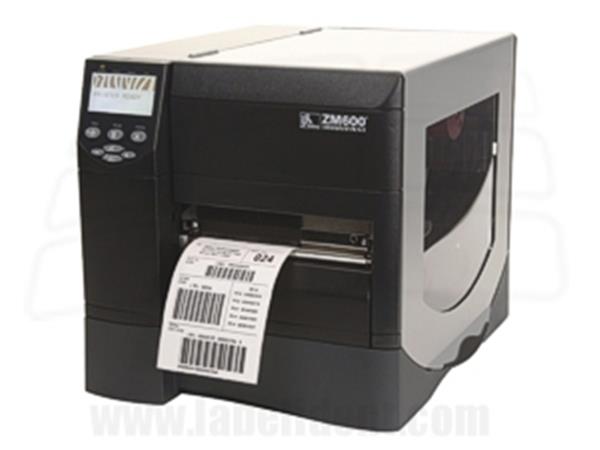

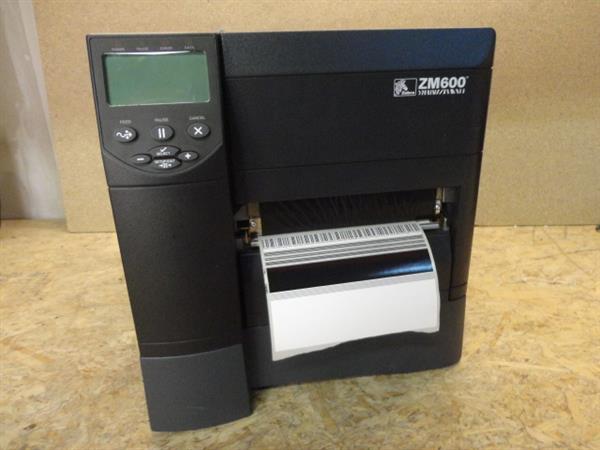

Zebra ZM600 Barcode Label Printer
Professionele Thermische Printer:
Resolutie: 203Dpi
Toepassing: Barcodes - Labels - Sticker
Conditie: Occasion

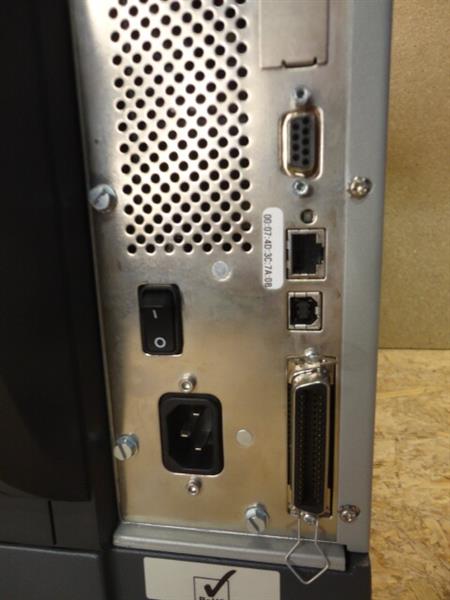

Aansluiting: USB / Parallel / Serieel / RJ-45
Maximale Media Breedte: 16,8cm

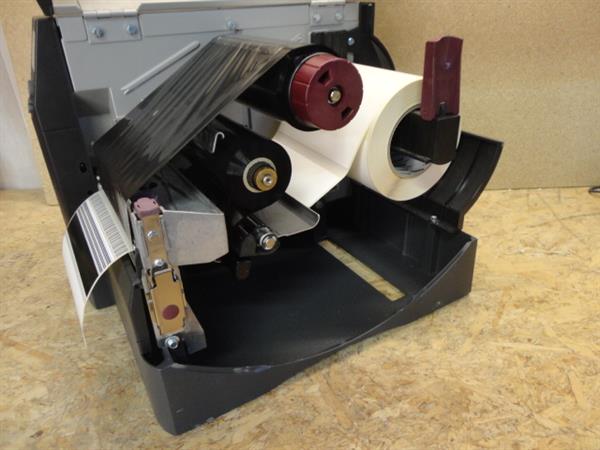

Direct Thermisch en Thermisch Transfer
Inclusief:
* Windows Driver
* Zebra Label Design Software
* USB Printer Kabel
Standard Features
Thermal transfer and direct thermal operating modes (can only use one mode at a time)
Die-cast aluminum base, frame, and printhead mechanism
Metal media cover with large clear window
16 MB DRAM, 8MB Flash
203dpi (8 dots/mm) printhead
RS-232C Serial Interface
High Speed, IEEE 1284, Bi-Directional Parallel Interface
USB 2.0
Transmissive and reflective media sensors
Multi-lingual backlit 240x128 pixel graphic display
Color-coded operator cues
RFID Ready
7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
32-bit processor
Auto-calibration
Auto detectable (90V - 265V) power supply
Element Energy Equalizer™ (E3®) (for print head energy control)
Real Time Clock
Unicode™ - Compliant
Quick change printhead and platen
Charcoal gray form design (for improved smudge resistance)
ZPL® or ZPLII® (Zebra Programming Language®)
Printer Specifications
Resolution
203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory
16 MB DRAM
8 MB Flash
64 MB Factory-Installed On-Board Flash (optional)
Print width
6.6" (168 mm)
Print length
Length with 203 dpi: 102" (2,591 mm)
Length with 300 dpi (optional): 45" (1,143 mm)
Print speed
203 dpi
10" (254 mm)/sec
300 dpi
8" (203 mm)/sec
Media sensors
Reflective
Transmissive
Media Characteristics
Maximum label and liner width
7" (178 mm) - tear & cutter
6.75" (171 mm) - peel & rewind
Minimum label and liner width
2" (51 mm) - tear & cutter, peel & rewind
Maximum label and liner length
39" (991 mm)
Maximum roll diameter
8" (203 mm)
Core diameter
3" (76 mm)
Media thickness
.0023" (.058 mm) to .010" (0.25 mm)
Media types
black mark, continuous, die-cut, fanfold, notch, perforated, tag stock
Ribbon Characteristics
Outside diameter
3.2" (81.3 mm)
Standard length
1476' (450 m)
Ratio
3:1 media roll to ribbon ratio
Ribbon width
2" (51 mm) to 6.85" (174 mm)
Ribbon setup
Ribbon wound ink side out
ID Core
1.0" (25.4 mm)
Kenmerken: Kopen in Baarle-nassau
