Beschrijving

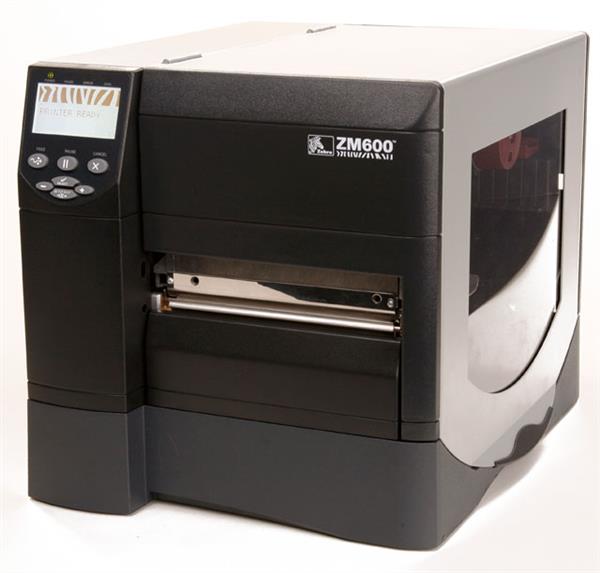

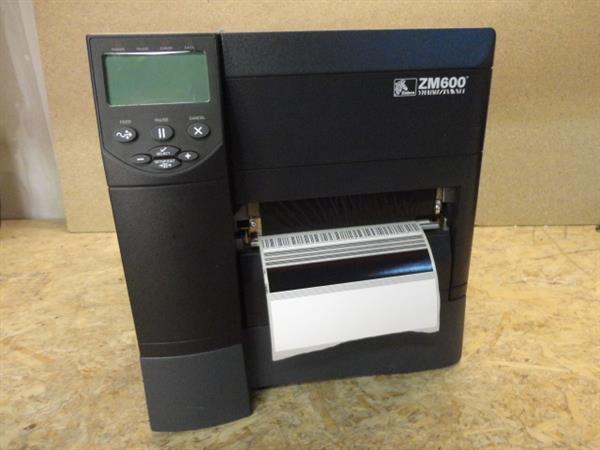

Zebra ZM600 Barcode Label Printer Professionele Thermische Printer: Model: ZM600-300E-0100T Resolutie: 300Dpi Toepassing: Barcodes - Labels - Sticker Conditie: Occasion Aansluiting: USB / Parallel
Standard Features
Thermal transfer and direct thermal operating modes (can only use one mode at a time)
Die-cast aluminum base, frame, and printhead mechanism
Metal media cover with large clear window
16 MB DRAM, 8MB Flash
203dpi (8 dots/mm) printhead
RS-232C Serial Interface
High Speed, IEEE 1284, Bi-Directional Parallel Interface
USB 2.0
Transmissive and reflective media sensors
Multi-lingual backlit 240x128 pixel graphic display
Color-coded operator cues
RFID Ready
7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
32-bit processor
Auto-calibration
Auto detectable (90V - 265V) power supply
Element Energy Equalizer⢠(E3®) (for print head energy control)
Real Time Clock
Unicode⢠- Compliant
Quick change printhead and platen
Charcoal gray form design (for improved smudge resistance)
ZPL® or ZPLII® (Zebra Programming Language®)
Printer Specifications
Resolution 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)Memory
16 MB DRAM
8 MB Flash
64 MB Factory-Installed On-Board Flash (optional)
Print width 6.6 (168 mm)Print length
Length with 203 dpi: 102 (2,591 mm)
Length with 300 dpi (optional): 45 (1,143 mm)
Print speed 203 dpi
10 (254 mm)/sec
300 dpi
8 (203 mm)/secMedia sensors Reflective
Transmissive
Media Characteristics
Maximum label and liner width
7 (178 mm) - tear & cutter
6.75 (171 mm) - peel & rewind
Minimum label and liner width 2 (51 mm) - tear & cutter, peel & rewindMaximum label and liner length 39 (991 mm)Maximum roll diameter 8 (203 mm)Core diameter 3 (76 mm)Media thickness .0023 (.058 mm) to .010 (0.25 mm)Media types black mark, continuous, die-cut, fanfold, notch, perforated, tag stock
Ribbon Characteristics
Outside diameter 3.2 (81.3 mm)Standard length 1476' (450 m)Ratio 3:1 media roll to ribbon ratioRibbon width 2 (51 mm) to 6.85 (174 mm)Ribbon setup Ribbon wound ink side out ID Core 1.0 (25.4 mm)
Kenmerken: Kopen in Baarle-nassau
